AWS Backup

AWS Backup is a fully managed backup service that makes it easy to centralize and automate the backing up of data across AWS services. With AWS Backup, you can create backup policies called backup plans. You can use these plans to define your backup requirements, such as how frequently to back up your data and how long to retain those backups.

AWS Backup lets you apply backup plans to your AWS resources by simply tagging them. AWS Backup will automatically backs up your AWS resources according to the backup plan that you defined.

RDS/PostgreSQL will automatically backup your database and retain those backups for the length of your retention period, up to 35 days. Backups preformed via AWS Backup are considered manual snapshots, and will persist until deleted.

Creating a Service Role for AWS Backup

In order for AWS Backup to preform operations on your behalf we need to assign it a service role.

  1. From the IAM Console select Create role aws backups

  2. Select AWS Service for the trusted entity type and use the use cases dropdown to find and select AWS Backup, select the AWS Backup radio button, then click Next. aws backups

  3. In the add permissions step, use the filter by entering AWSBackupServiceRole and select the checkboxes for: AWSBackupServiceRolePolicyForBackup and AWSBackupServiceRolePolicyForRestore, then click Next. aws backups

  4. Give the role a name, rdspg-AWSBackupServiceRole, review the details then click Create Role. aws backups aws backups aws backups aws backups

On-Demand Backup from AWS Backup

Begin in the AWS Backup Console .

  1. First create a Backup Vault, which is a logical container used to organize your backups. Click on Backup Vaults from the left-hand menu, then select Create Backup vault. aws backups

  2. Give the vault a name, rdspg-backup-vault and click Create Backup vault. aws backups

  3. With your vault created you can now create an on-demand backup. Choose Protected resources from the left-hand menu, then click Create on-demand backup. aws backups

  4. Complete the dialog by selecting RDS and your resource type then choosing the rdspg-fcj-labs database. Select the backup vault you just created. Select choose an IAM role, and select your rdspg-AWSBackupServiceRole from the dropdown and finally hit Create on-demand backup. aws backups

  5. You will see the backup in your backup jobs list. This is the same as the manual snapshot, but your backup is organized into a backup vault. aws backups

Setup a Backup Plan in AWS Backup

Selection of resources from a backup plan can be done using either resource tags or direct references.

Now setup a backup plan using resource tags. Using AWS Backup this way will ensure that newly created resources that are properly tagged with be backed up via AWS Backup

  1. Begin by adding resource tags to your database from the RDS Console , click the rdspg-fcj-labs instance, then select the tags tab and choose Add.

aws backups

  1. Add Environment for production and ResourceType for rdspg-fcj tag to your rdspg-fcj-labs database.

  2. From the AWS Backup Console select Backup plans from the left-hand menu, then choose Create backup plan. aws backups

  3. Select Build new plan, enter Backup plan name rdspg-backup-plan, enter Backup rule name DailyBackups, select Backup vault rdspg-backup-vault, leaving everything else at the default, then click Create plan. aws backups aws backups

  4. Complete the dialog by entering the resource assignment name, rdspg-bp-resource-selection, choose IAM role and select the IAM role created earlier rdspg-AWSBackupServiceRole. aws backups

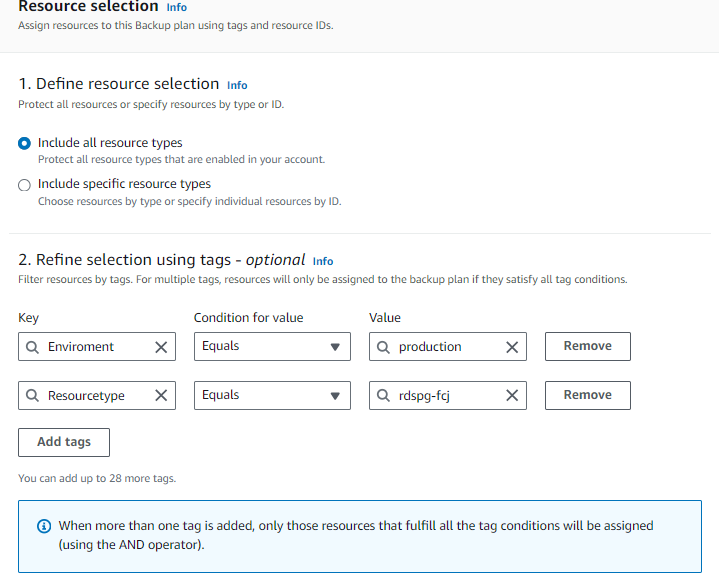

  5. Finally add the Environment and ResoureType tags as shown in the screengrab. aws backups

Congratulations! Now that you have created a backup plan based on tags, any databases you create in future with these tags will be automatically backed up with this plan.
